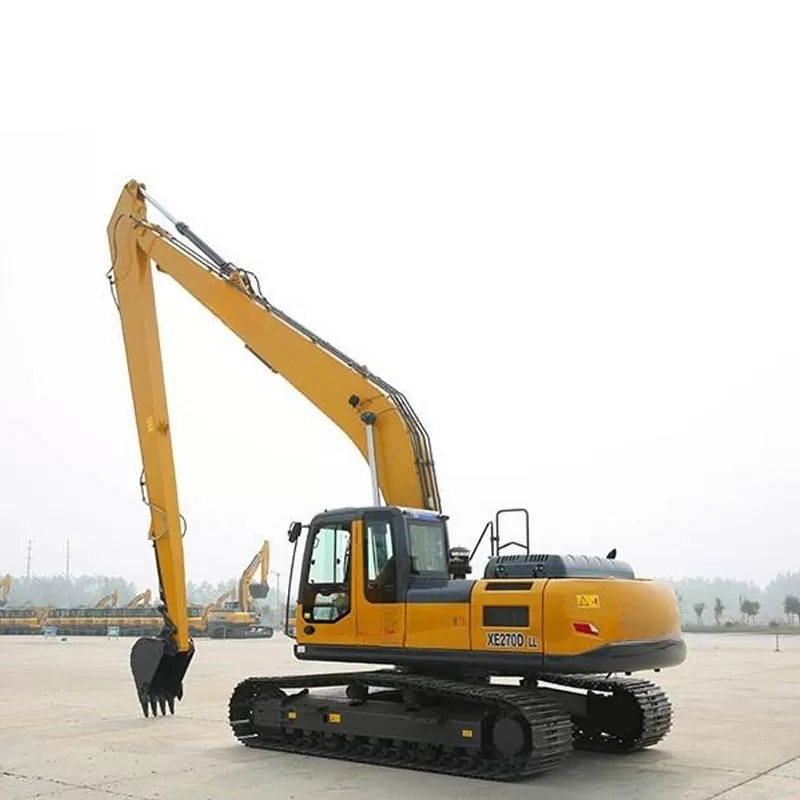

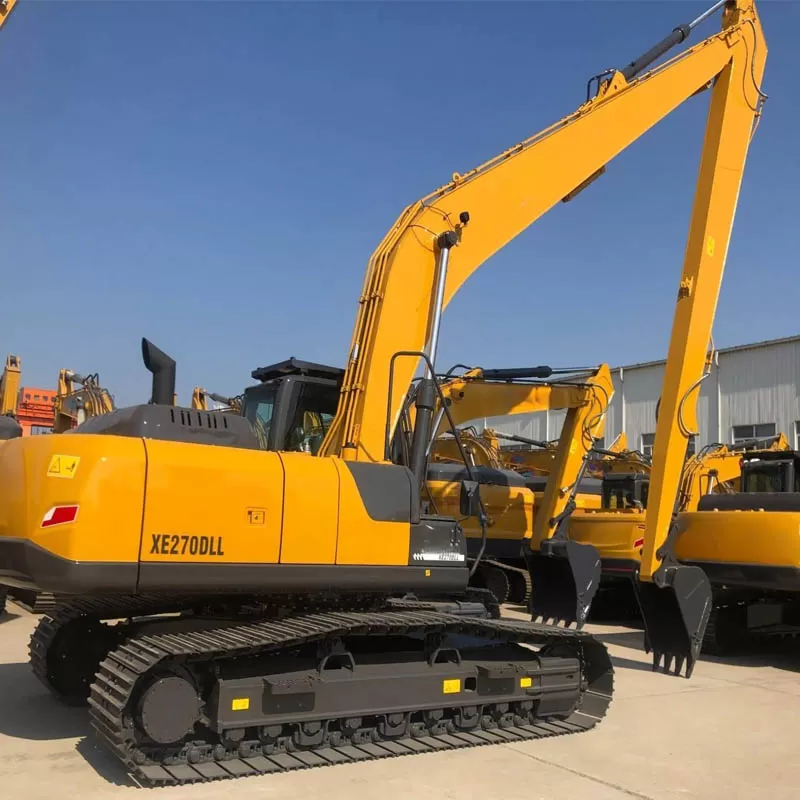

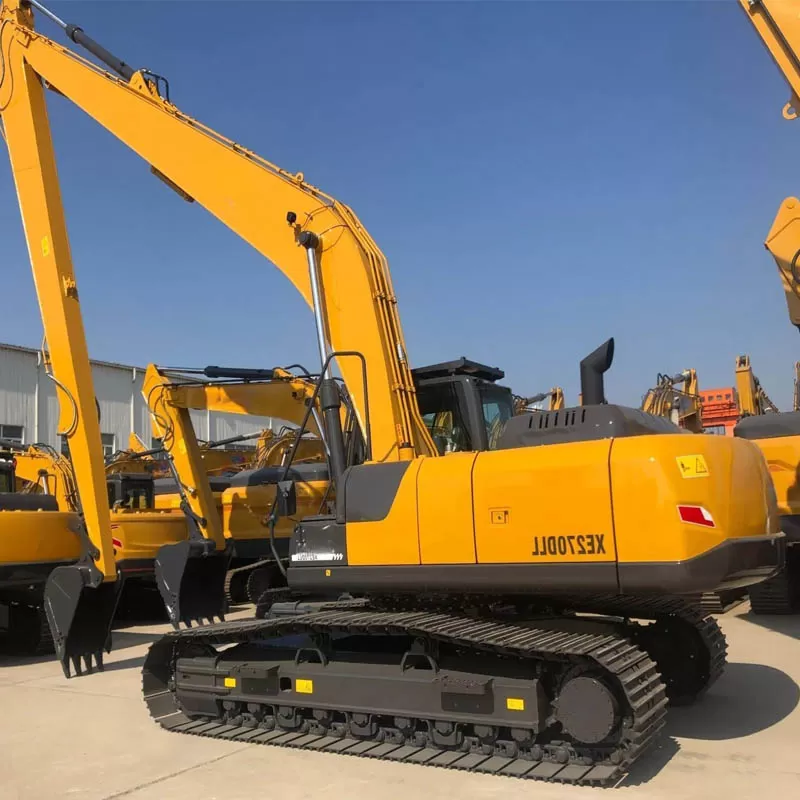

The XE270DLL hydraulic excavator has a maximum digging radius of 18 meters and is widely used in applications such as river dredging, embankment protection, slope construction, and subway construction, where ground conditions are restrictive.
|
brand |
TOP BRAND |
|||||
|
Hydraulic cylinder brands |
Top Brands |
|||||
|
country of origin |
Jiangsu, China |
|||||
|
Hydraulic pump brands |
Top Brands |
|||||
|
Power (W) |
150KW |
|||||
|
Exercise |
Tracked excavator |
|||||
|
Maximum excavation depth |
15040mm |
|||||
|
Maximum excavation radius |
18275mm |
|||||
|
Rated speed |
6.1 km/h |
|||||
|
Mechanical test report |
Available |
|||||
|
Core components |
PLC, pressure vessel, engine, gear, motor, pump, bearing |
|||||
|
Bucket capacity |
0.4m³ |
|||||
|
Maximum torque |
82511250 |
|||||
|
Rotationspeed |
11.4 r /min |
|||||
|
Bucketdiggingforce |
185KN |
|||||
|
Bucket Capacity |
0.4m³ |
|||||
|
Engine Brand |
Top Brands |
|||||
|
Warranty period |
Top Brands |
|||||
|
Hydraulic valve brands |
yellow |
|||||
|
color |
13250mm |
|||||
|
Maximum excavation height |
28300 kg |
|||||
|
The weight of the fuselage is |
Top Brands |
|||||
|
brand |
High work efficiency |
|||||
|
Exclusive selling points |
Available |
|||||
|
Video factory inspection |
28,300 kg |
|||||
|
Workingweight |
150kw/rpm |
|||||
|
Rated power |
6.1/3.8 km/h |
|||||
|
walkingspeed |
6.7 liters |
|||||
|
Discharge |
129KN |
|||||
|
boomdigging force |
28,300 kg |
|||||
|
Packaging and shipping information |
||||||
|
Single package size |
1390 x 340 x 330 cm |
|||||
|
Gross weight of a single product |
28,300,000 kg |
|||||
|
|
||||||
|
As weight |
Kg |
28300 |
||||
|
Bucket capacity |
m & sup3; |
0.4 |
||||
|
|
Model |
/ |
QSB7 |
|||
|
direct injection |
/ |
√ |
||||
|
Four moves |
/ |
√ |
||||
|
Water cooling |
/ |
√ |
||||
|
Turbocharged |
/ |
√ |
||||
|
Number of cylinders |
/ |
6 |
||||
|
Output power |
kilowatts/revolutions/minutes |
150/2050 |
||||
|
Maximum torque/speed |
Nm/rpm |
825/1250 |
||||
|
Displacement |
L |
6.7 |
||||
|
|
driving speed |
km/h |
6.1/3.8 |
|||
|
Swing speed |
r/min |
11.4 |
||||
|
Climbability |
° |
30 |
||||
|
Ground pressure |
kPa |
41.9 |
||||
|
Bucket digging force |
kN |
91 |
||||
|
Arm digging force |
kN |
56 |
||||
|
Maximum traction |
kN |
206 |
||||
|
|
Main pump rated flow |
L/min |
2×259 |
|||
|
Main safety valve pressure |
MPa |
34.3/37 |
||||
|
Travel system pressure |
MPa |
34.3 |
||||
|
Rotary system pressure |
MPa |
25 |
||||
|
pilot system pressure |
MPa |
3.9 |
||||
|
|
fuel tank capacity |
L |
400 |
|||
|
Hydraulic oil tank capacity |
L |
220 |
||||
|
Engine oil capacity |
L |
19.5 |
||||
|
|
Total length |
mm |
13890 |
|||
|
Total width |
mm |
3390 |
||||
|
Overall height |
mm |
3250 |
||||
|
Platform width |
mm |
2830 |
||||
|
track length |
mm |
4640 |
||||
|
Total chassis width |
mm |
3390 |
||||
|
track width |
mm |
800 |
||||
|
Length of the roller center |
mm |
3790 |
||||
|
gauge |
mm |
2590 |
||||
|
counterweight gap |
mm |
1090 |
||||
|
Minimum ground clearance |
mm |
495 |
||||
|
Minimum tail swing radius |
mm |
2955 |
||||
|
orbital altitude |
mm |
988 |
||||
|
|
Max. Digging height |
mm |
13250 |
|||
|
Maximum tipping height |
mm |
10955 |
||||
|
Maximum excavation depth |
mm |
15040 |
||||
|
Maximum depth cut at the bottom of the 2240 mm (8 ft) horizontal plane |
mm |
- |
||||
|
Maximum vertical wall excavation depth |
mm |
13210 |
||||
|
Maximum excavation radius |
mm |
18275 |
||||
|
Minimum swing radius |
mm |
7030 |
||||
|
|
boom length |
mm |
9700 |
|||
|
arm length |
mm |
7880 |
||||
|
Bucket capacity |
m & sup3; |
0.4 |
||||
|
|
boom length |
m & sup3; |
/ |
|||
|
arm length |
m & sup3; |
/ |
||||
|
Bucket capacity |
m & sup3; |
|
||||
